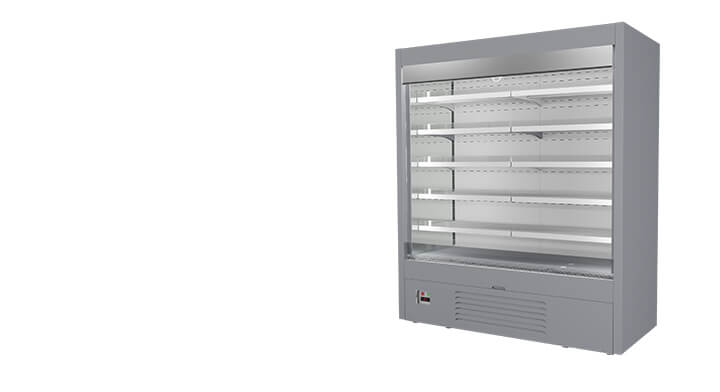

Refrigerated displays ADX

The most up-to-date and requested kind of refrigeration equipment, designed for perfect showcasing all types of foodstuf in out- of- doors restaurants, bars, in-door modern food courts, grocery stores and supermarkets with self-service format.

Download catalog

FEATURES SPECIFICATIONS

Optionally ADX125 can be equipped with:

Illumination of each shelf
Price tag holder
Side panel with polished stainless steel wall and / or mirror

Additionally provided:

Condensate evaporation
Defrosting of the evaporator
Installing a protective bumper
Layout in a line

When connected to a line, the following slide partitions are available:

Blank with a painted wall
Blank with polished stainless steel wall
Blank with a mirror and a painted wall
Plexiglas partitions

Dimensions	ADX125	ADX150	ADX187
Length (without side panels panels)	1250 mm	1500 mm	1875 mm
Depth	800 mm	800 mm	800 mm
Height	2100 mm	2100 mm	2100 mm
Net weight	280 kg	340 kg	420 kg
Technical data
Gross volume	1000 dm³	1250 dm³	1550 dm³
Net volume	780 dm³	935 dm³	1170 dm³
Exposition area (5 rows of upper shelfs + 1 row of lower shelfs)	3,4 m²	4,1 m²	5,2 m²
Max loading per 1 shelf	20 kg	20 kg	20 kg
Ambient temperature range	+16...+25°C	+16...+25°C	+16...+25°C
Recommended humidity	<60 %	<60 %	<60 %
Climate class	3	3	3
Type of cooling	dynamic	dynamic	dynamic
Voltage / frequency	220-240/50 V/HZ	220-240/50 V/HZ	220-240/50 V/HZ
Refrigerant type
Refrigerant	R290	R290	R290
CO₂	0 t	0 t	0 t
Refrigerant quantity	0,15 kg	0,15 kg	0,15 kg
Electrical data
Current consumption	5,8 A	6,0 A	8,1 A
Energy consumption	17 kW/24h	19 kW/24h	21 kW/24h
